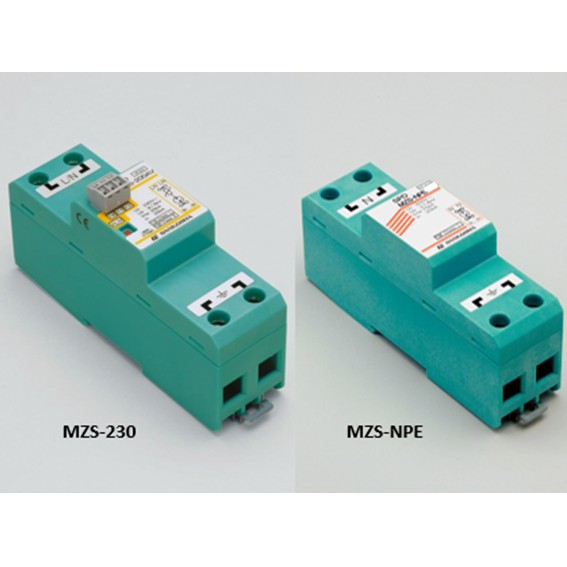

MZS-230/MZS-NPE (Class 1)

Conforming standards

IEC 61643-11 compliant

RoHS compliant

Features

Impulse sparkover current up to 25kA(MZS-230), 75kA(MZS-NPE) (10/350 μs)

Voltage protection level 2.0kV or less

High follow current shutoff ability

Deterioration display function (warning contact output terminal attached)

DIN rail(35 mm)

Applications

Low voltage power supply circuits in switchboards and distribution boards (AC 100V/200V)

Power supply circuits in control equipment (AC 100V/200V)
