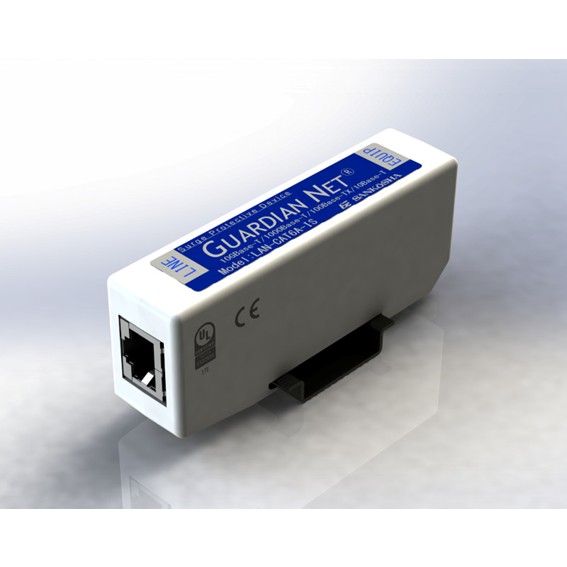

LAN Series (Isolation type)

Conforming standards

IEC 61643-351 compliant

UL standard aquired (LAN-1000IS & LAN-CAT6A-IS)

RoHS compliant

Features

Uses isolation type circuits

Gigabit Erthernet ~10GBASE-T enabled

Earth-free type not requiring earthing construction work or protecting equipment without earthing connectors

Impluse withstand voltage 5~15kV

DIN rail mountable (35mm)

Applications

Gigabit Ethernet

Network cameras

Ordinary households (PCs, network devices)

Outdoors installed network devices
